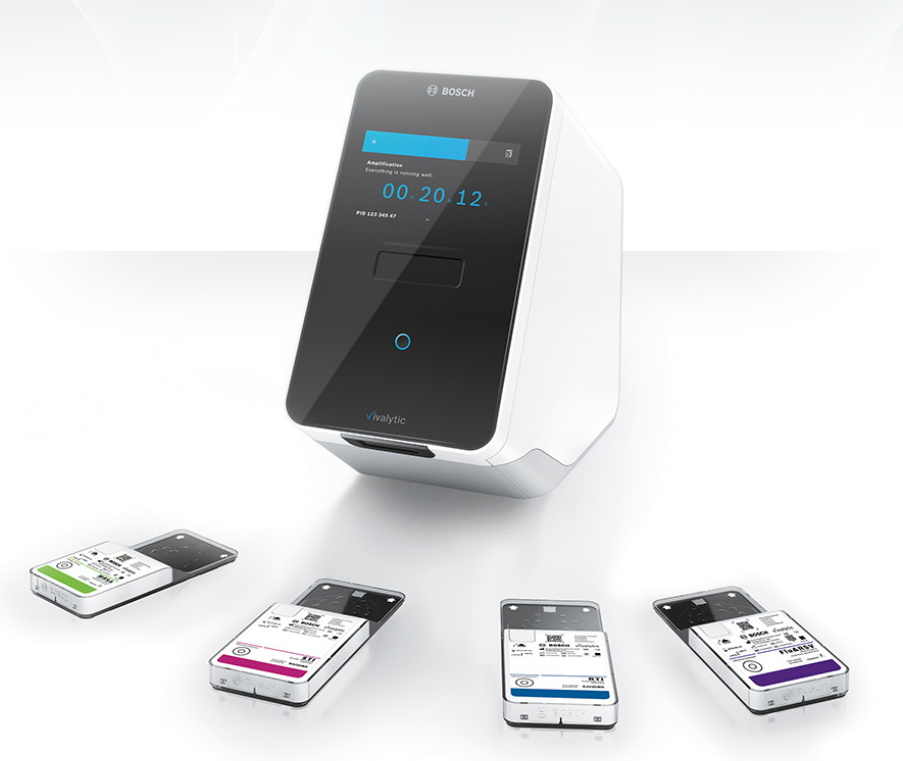

Vivalytic | All In One Molecular Solution

0.00kr

  • Full Molecular Automation
  • Versatile Test Menu
  • Multiplex Testing
  • Ease of Use
  • Compact Design
  • Connected
Artikelnr: F09G300115 Kategorier: ,

Beskrivning

with Bosch. It integrates sample extraction, PCR amplification, and detection into a compact benchtop device. Powered by Randox’s patented Biochip Technology, it delivers multiple results simultaneously from a single patient sample.

The biochip uses chemiluminescent signals—light emitted from chemical reactions—across spatially discrete testing regions (DTRs), each representing a specific test. This High-Plex capability reduces the need for multiple, time-consuming assays, saving samples and time.

Simple 4-step workflow: scan or enter sample info, scan the reagent cartridge, add the sample, and insert the cartridge. The touchscreen shows time remaining and displays results. Multiple Vivalytics connect wirelessly, allowing centralized control and reporting.

Specificationer

Display 7 inch 16:10, 1024 x 600 pixel touchscreen
Operating Air Pressure Range 850–1,100 hPa, corresponds to pressure range 0–1,400 m above sea level
Operating Temperature 15–30 °C
Storage Temperature -20–60 °C
Data Transfer Ethernet 10/100 MB, WLAN 2.4 GHz (802.11b/g/n); internal: Bluetooth v4.1, 2.4 GHz (low energy), USB 2.0
Electromagnetic Compatibility IEC/EN 61326-2-6, RED 2014/53/EC, FCC 47 CFR 15
Dimensions Length 400 mm, Width 204 mm, Height 388 mm
Distance/Space to the Wall ~20 cm
Weight 15 kg
Storage Humidity 20–95 % (not condensing)
Operating Humidity 30–80 % (not condensing)
Electrical Data 100–240 V~, 50/60 Hz, 160 VA
Instrumental Safety IEC/EN 61010-1, IEC/EN 61010-2-010, IEC/EN 61010-2-101, Regulation 2017/746
Memory Capacity 16 GB
Mean Loudness ≤ 55 dB(A) in operating mode; short-term loudness can exceed mean loudness
Socket Use multiple sockets for EU countries and UK
